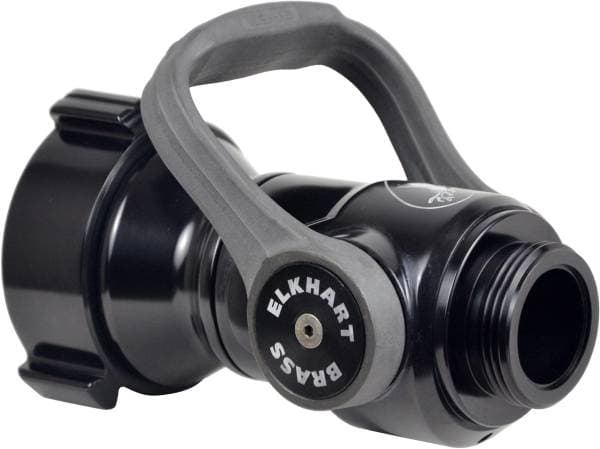

XD Shutoffs

The XD Shutoffs are engineered for Xtreme Duty firefighting applications, delivering exceptional durability, reliable flow control, and long service life in demanding fireground environments. Designed with heavy-duty components and available in multiple configurations, these shutoffs provide firefighters with dependable performance for attack lines, standpipe operations, and water supply management.

Built with a forged metal bale handle, full-round metal ball valve, and laser-etched markings, XD Shutoffs are designed to withstand the rigors of daily firefighting use. Available with or without a pistol grip, these shutoffs can also be customized with your department logo and a choice of twelve handle insert colors. Multiple waterway configurations allow departments to select the ideal setup for their operational requirements.

Features

• Built for Xtreme Duty firefighting applications
• Forged metal bale handle for maximum durability
• Full-round metal ball valve provides smooth, reliable flow control
• Laser-etched markings for easy identification and long-term visibility

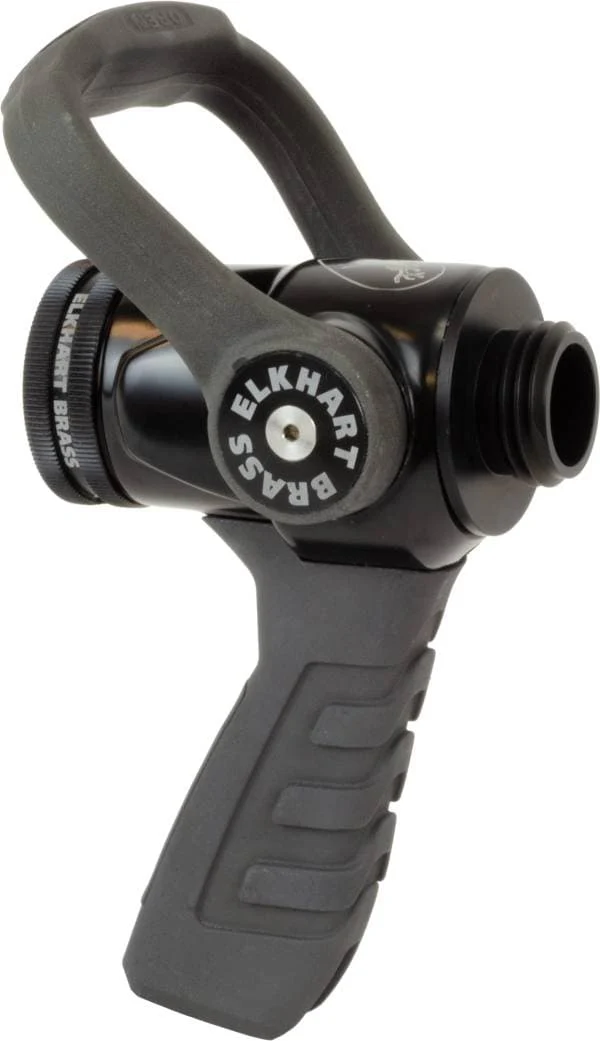

• Available with or without pistol grip
• Customizable with department logo and twelve handle insert color options
• Multiple waterway configurations available to match operational needs
• Free swivel inlets allow for easier hose handling and reduced twisting
• Rugged construction built for demanding firefighting environments
• Ideal for structural firefighting, standpipe operations, and attack line deployment

Specifications

• Manufacturer: Elkhart Brass
• Product Type: XD Shutoff
• Construction: Forged Metal Components
• Handle Type: Forged Metal Bale Handle
• Ball Valve Type: Full-Round Metal Ball
• Identification: Laser-Etched Markings
• Pistol Grip: Available or Optional Depending on Model
• Customization: Department Logo and Twelve Handle Insert Colors Available

1.5" XD Mid/Low Shutoff

• Inlet Connection: 1.5" Free Swivel Inlet
• Outlet Connection: 1.5" Outlet
• Waterway Diameter: 1.0"

1.5" XD Shutoff

• Inlet Connection: 1.5" Free Swivel Inlet
• Outlet Connection: 1.5" Outlet
• Waterway Diameter: 1-3/8"

2.5" XD Shutoff

• Inlet Connection: 2.5" Free Swivel Inlet
• Outlet Connection: 1.5" Outlet
• Waterway Diameter: 1-3/8"

Applications

• Structural Firefighting
• Attack Line Operations
• Standpipe Operations
• High-Rise Firefighting
• Municipal Fire Departments
• Industrial Fire Protection
