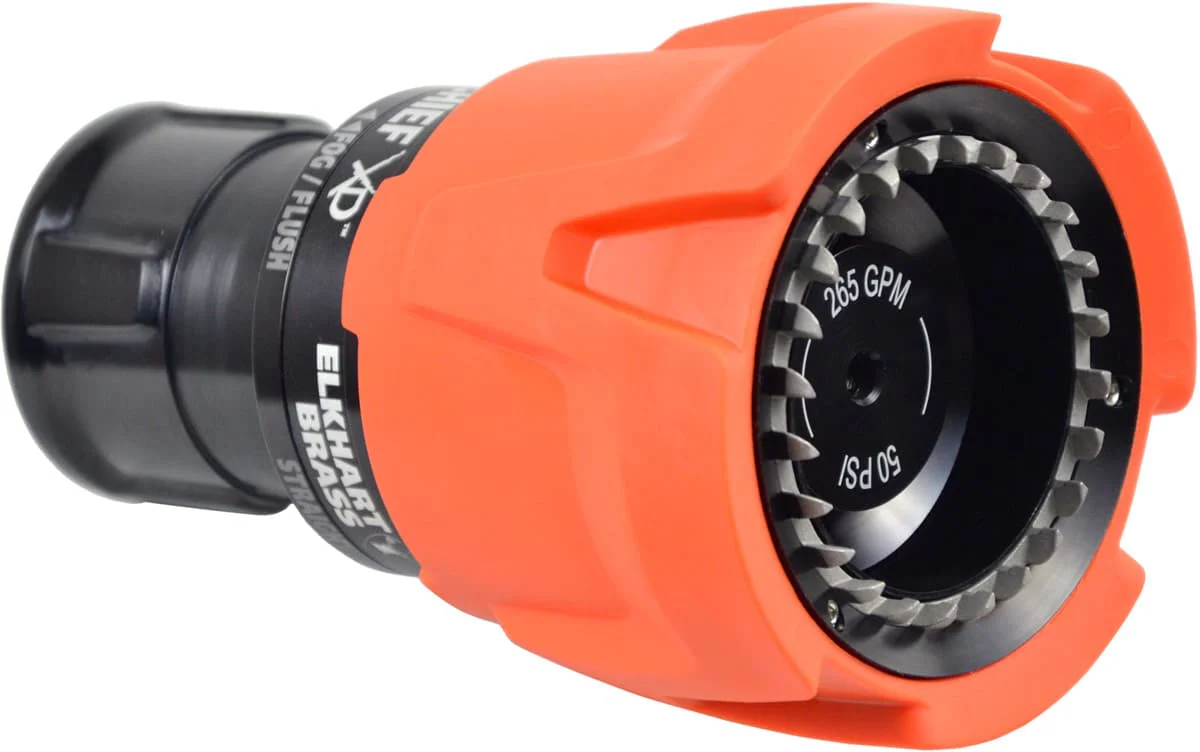

Chief XD® High-Range Handline Nozzle Tip

The Chief XD® High-Range Handline Nozzle Tip is a heavy-duty fixed-flow fog nozzle tip designed to deliver dependable performance in high-flow firefighting operations. Built on the proven Chief XD platform, this nozzle tip is engineered for a lifetime of service and provides firefighters with the durability, stream quality, and flow performance needed for demanding structural, industrial, and large-volume attack applications.

Designed for use with compatible shutoff assemblies, the High-Range Chief XD Tip is available in multiple flow and pressure configurations, allowing departments to select the flow characteristics best suited to their operational requirements. Featuring rugged construction, customizable color options, and a choice of spinning metal teeth or fixed molded urethane teeth, this nozzle tip provides reliable performance in the harshest firefighting environments.

Features

• Fixed-flow fog nozzle tip designed for high-flow firefighting operations
• Compatible with shutoff assemblies featuring a 1.5" rigid inlet connection
• Available in multiple flow and pressure configurations
• Excellent stream quality and pattern control
• Available with spinning metal teeth or fixed molded urethane teeth
• Durable XD® construction built for long service life
• No stickers to peel, fade, or scratch
• Designed for demanding municipal and industrial firefighting applications
• Available in multiple color options for department customization
• Built to provide reliable performance throughout its service life

Available Flow Rates

50 PSI (3.5 BAR)

• 185 GPM (700 LPM)
• 210 GPM (795 LPM)
• 250 GPM (950 LPM)
• 265 GPM (1000 LPM)

75 PSI (5 BAR)

• 250 GPM (950 LPM)
• 300 GPM (1140 LPM)

100 PSI (7 BAR)

• 250 GPM (950 LPM)

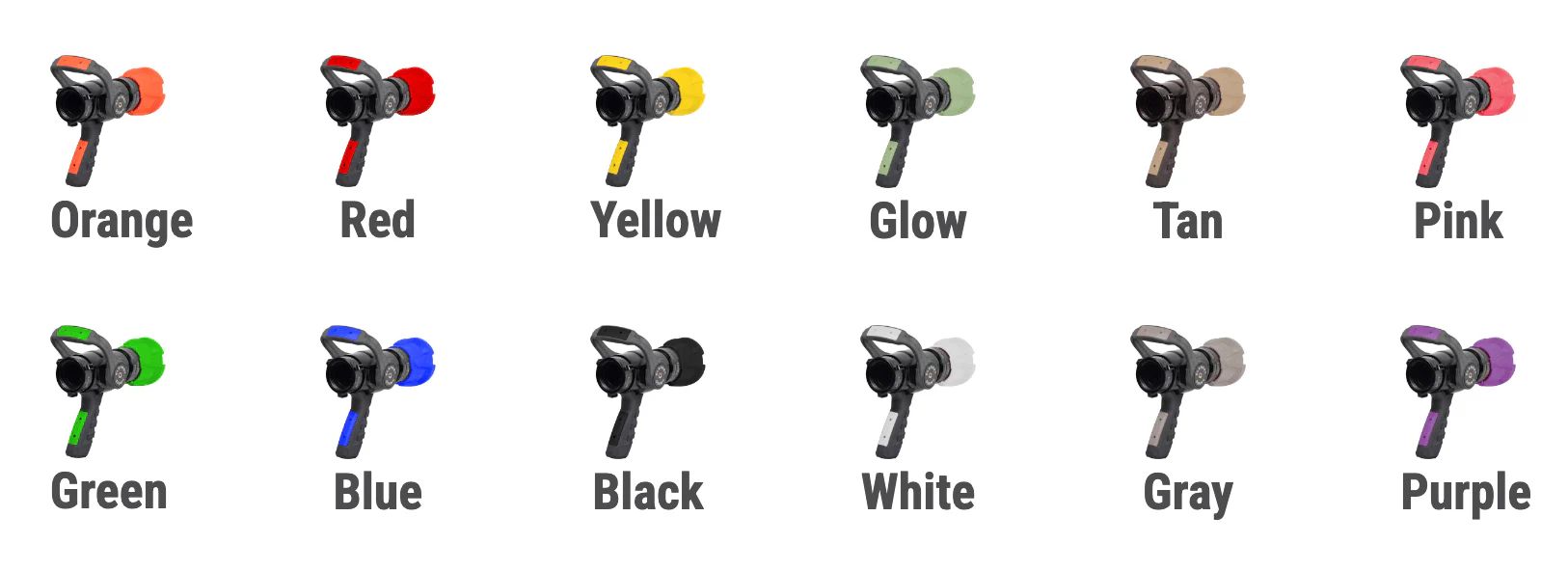

Available Colors

• Orange
• Red
• Yellow
• Glow
• Tan
• Pink
• Green
• Blue
• Black
• White
• Gray
• Purple

Specifications

• Manufacturer: Elkhart Brass
• Product Line: Chief XD®
• Product Type: Fixed Flow Fog Nozzle Tip
• Configuration: High-Range
• Inlet Connection: 1.5" Rigid Inlet
• Operating Pressures: 50 PSI (3.5 BAR), 75 PSI (5 BAR), and 100 PSI (7 BAR)
• Teeth Options: Spinning Metal Teeth or Fixed Molded Urethane Teeth
• Color Options: 12 Available Colors

Applications

• Structural Firefighting
• Large Diameter Attack Lines
• Industrial Fire Protection
• Municipal Fire Departments
• High-Flow Fire Suppression Operations
• Emergency Response and Fire Attack Applications
